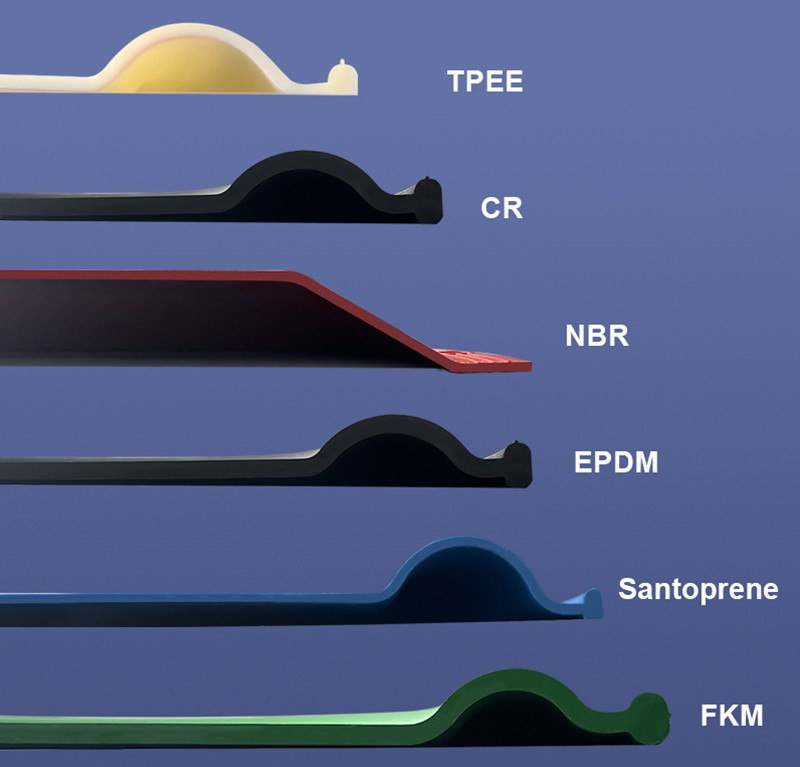

Rubber Diaphragm

Fluid transport, through the reciprocating motion of the diaphragm, creates a pressure difference and drives the liquid to flow.


Corrosion resistance, wear resistance, elasticity, high and low temperature resistance, fatigue resistance, non-toxicity and easy to clean, etc.



COMPLETE SPECIFICATIONS

SUPPORT CUSTOMIZATION

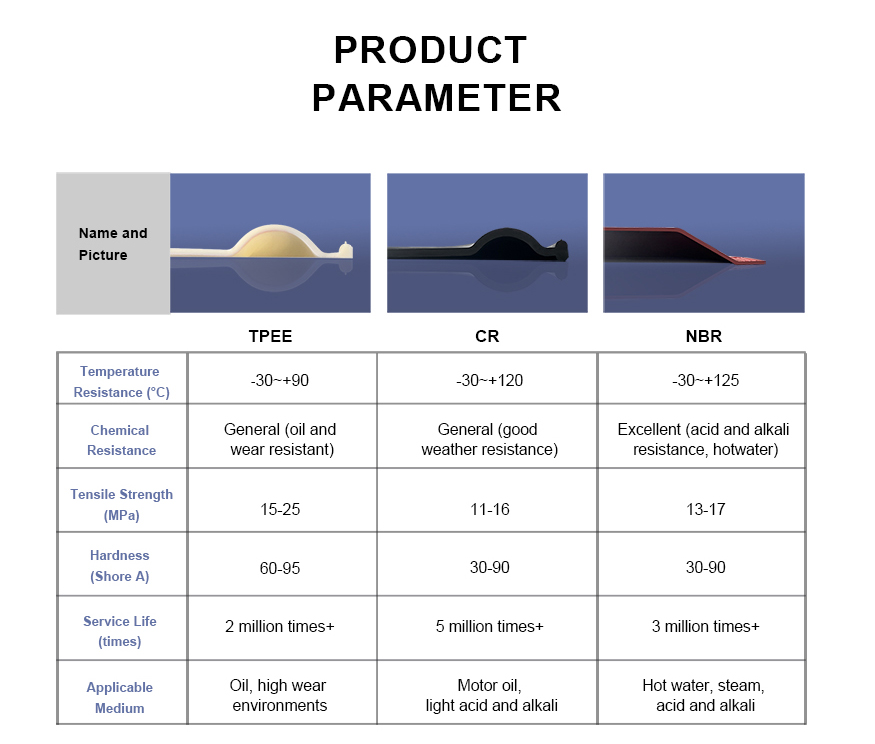

PRODUCT

PARAMETER



Temperature
Resistance (°C)

-30~+90

-30~+120

-30~+125

Chemical Resistance

General (oil and wear resistant)

General (good weather resistance)

Excellent (acid and alkaliresistance, hotwater)

Tensile Strength (MPa)

15-25

11-16

13-17

Hardness (Shore A)

60-95

30-90

30-90

Service Life(times)

2 million times+

5 million times+

3 million times+

Applicable Medium

Oil, high wear environment

Motor oil,light acid and alkali

Hot water, steamacid and alkali

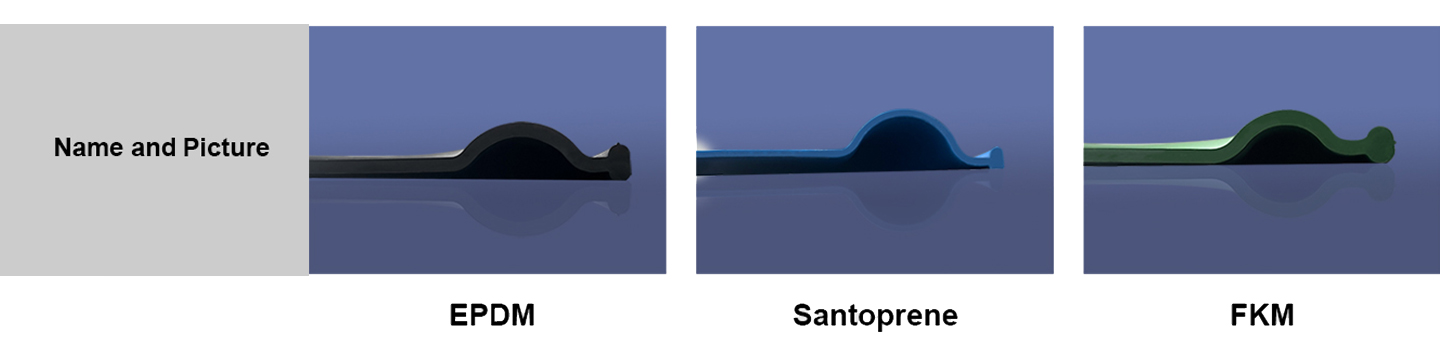

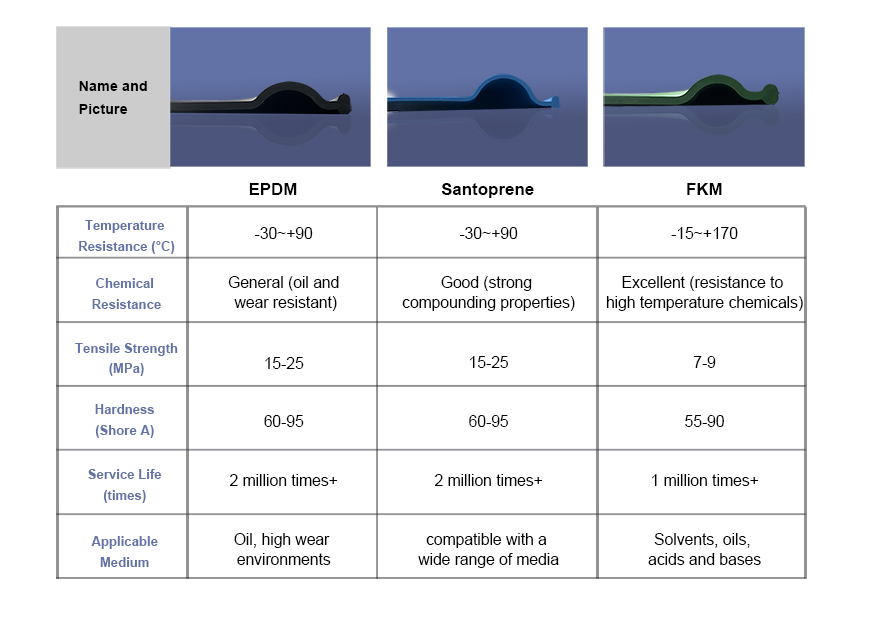

Temperature
Resistance (°C)

-30~+90

-30~+90

-15~+170

Chemical Resistance

General (oil and wear resistant)

Good (strongcompounding properties)

Excellent (resistance to high temperature chemicals)

Tensile Strength (MPa)

15-25

15-25

7-9

Hardness (Shore A)

60-95

60-95

55-90

Service Life(times)

2 million times+

2 million times+

1 million times+

Applicable Medium

Oil, high wearenvironment

compatible with a wide range of media

Solvents, oils,acids and bases


DIAPHRAGM COLOR

CAN BE CUSTOMIZED
